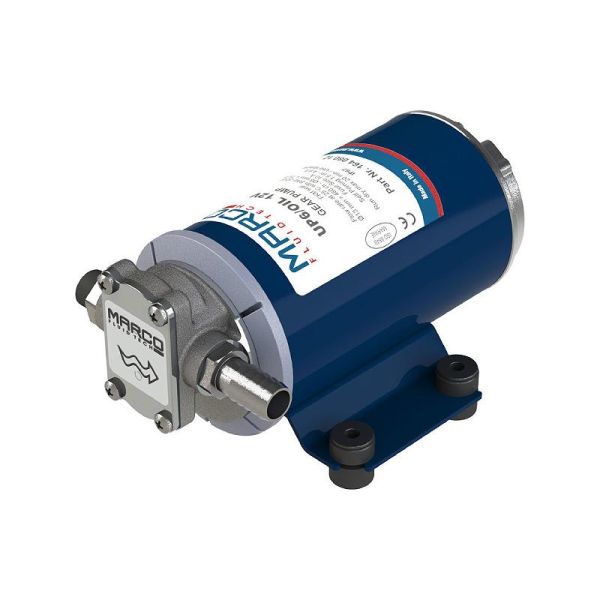

Marco SPA UP6 2.1gpm Oil Scavenge Pump
$439.00
SKU: 1640801
Marco SPA UP6 2.1gpm Oil Scavenge Pump, 16408012, 16408013
Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps with the special tubes kit (OK1) and for engines lubricating operations.
| Part n. | Product Name | Voltage (V) | Consumption (A) | Fuse (A) | Self-priming (ft) | Pressure (psi) | Flow rate ø 6 (gpm) | Flow rate ø 8 (gpm) | Flow rate ø 13 (gpm) | Ports (BSP) | Hose (ID) (in) | IP Protection | Motor power (W) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16408012 | UP6/OIL | 12 | 7 | 10 | 4.9 | 72.5 | 0.11 | 0.33 | 2.1 | 3/8' | 1/2 | 67 | 180 | 5.5 |
| 16408013 | UP6/OIL | 24 | 4 | 7,5 | 4.9 | 72.5 | 0.11 | 0.33 | 2.1 | 3/8' | 1/2 | 67 | 180 | 5.5 |
WARRANTY: 2 Year Warranty against manufacturer defects. An RMA needs to be requested to get the pump in for inspection. The 2 most common, non-covered failures are 1) No fuse used for power and 2) outside obstruction in the fluid chamber blocking the pump from rotating.
Specifications
| Part Number | 16408012, 16408013 |
|---|---|
| Brand | Marco SPA |
| Type of Part | Turbo Oiling |
| Length | 10 |
| Width | 8 |
| Height | 6 |
| Weight | 5.000000 |
